Adjustable camera deep mount (Silver)

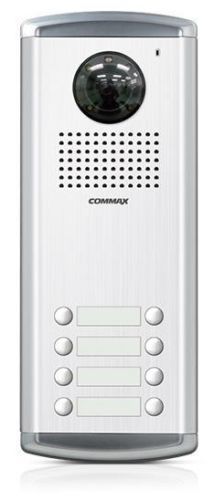

Intercom COMMAX DRC 8AC2
239,00 €
Discount
Price / kg:
Description
Features and Function
- 8-button door camera for apartment building up to 8 households
- Flush mounted type
- Individual 4 wires to each apartment video doorphone; 2 wires for electric door strike (optional)
- Compatible with Fine View series video doorphones such as CDV-35A, CDV-43U, CDV-70K, CDV-70U.
- Requires power supply DC12V, model RF-1A (AC110V) or RF-12015S (AC110V~240V) [sold separately]
Specifications
- Image device: 1/4" Color CCD
- Power source: DC12V, 230mA
- Installation system: 4 wires to each videophone, 2 wires to electric door strike
- Communication ways: synchronous
- Video transmission standard: NTSC
- Minimum illumination: 0.1 Lux (300 mm from the camera)
- View angle: Horizontal: 68º, Vertical: 55º
- Operating temperature: -10ºC to 50ºC
- Mounting type: flush mount
- Flush box dimension: 299 x 114 x 50
- Dimension: 316 x 123 x 16
