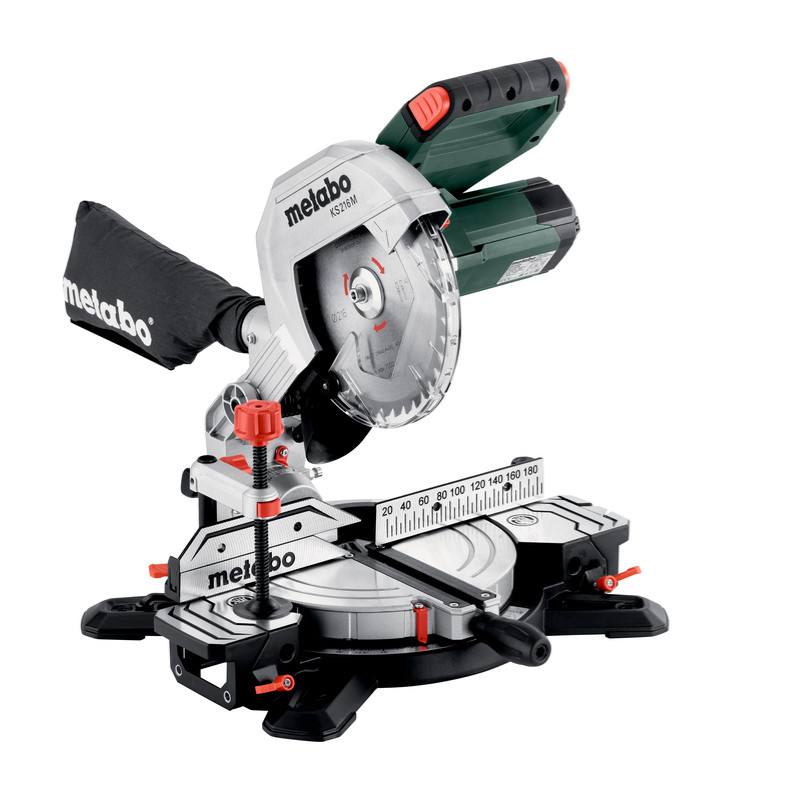

Metabo KS216 M LASER
Compact light-weight saw, ideal for mobile use
For sawing wood, coated panels and plastics
Non-slip rubber surface on handle and upper carry handle
Lateral handles
Transport lock
Turntable with precise angle adjustment
Die-cast aluminium work bench
Laser for exact display of the cut
Freely adjustable table extension on both sides with a practical support surface and integrated crosscut fence
Integrated working light
All scales visible from the working position
Chip collection bag for clean air at the workplace
Comparative technical values:
|
Dimensions L x W x H |
480 x 543 x 325 mm |
|
Support surface |
170 x 700 mm |
|
Maximum cutting width 90°/45° |
120 mm/80 mm |
|
Maximum cutting depth at 90°/45° |
60 mm/45 mm |
|
Maximum cross-section of the work piece |
|
|
- Straight cut 90°/90° |
120 x 60 mm |
|
- Double mitre 45°/45° |
80 x 45 mm |
|
Idle revolution |
5.000 /min |
|
Revolutions at rated load |
3.452 /min |
|
Cutting speed |
39 m/s |
|
Saw blade |
Ø 216 x 30 mm |
|
Turntable setting left/right |
47 °/47 ° |
|
Saw blade tilt left/right |
45 °/0 ° |
|
Rated input power |
1.350 W |
|
Weight |
9 kg |
Scope of delivery
Carbide circular saw blade (alternately bevel-ground tooth, 40 teeth)
2 table length extensions
high guide profiles that can be moved at the sides
Workpiece clamp
tool for saw blade change
Dust extraction adapter 0910059955
Chip collection bags
laser
