Timing Tool Set Ford Diesel 2.0-3.2TDCI

The timing tool kit is used to remove and install high press pump sprocket cover, keep the engine shaft in place when changing the timing belt or performing other engine repairs, and to replace the injection pump.
Application:
Suitable for Ford 2.0 2.2 2.4 3.2 TDDi TDCi diesel engine.
Ford: Puma, Mondeo (2000-2007), Transit (2000-2011); Jaguar X-Type (2001-2010);
Land Rover: Defender (2007-2011);
Fiat: Ducato (2006-2011);
Citroen: Jumper III, Relay (2006-2011);
Peugeot: Boxer 3 (2006-2011);
LDV Convoy (2002-2006).
Engine code:
2.0L: ABFA, D3FA, D5BA, D6BA, F3FA, FIFA, FMBA, HJBA, HJBB, HJBC, HJBE, N7BA, N7BB;
2.2L (chain driven with high pressure pump): QJBA(BG), QJBB, QJBC, QJBD;
2.2L (camshaft driven high pressure pump): 4HM, 4HU, 4HV, P8FA, P22DTE, QVFA, QWFA;
2.4L: 244DT, D0FA, D2FA, D2FB, D4FA, F4FA, FXFA, H9FA, H9FB,replacement for HEFA, HFFA, JXFA, PHFA, ZSD 424;
3.2L: SAFA. (Only control times setting, with engine code letters SAFA)
OEM Number: 303-682, 303-679A, 303-1151, 303-249, 303-675, 303-698.

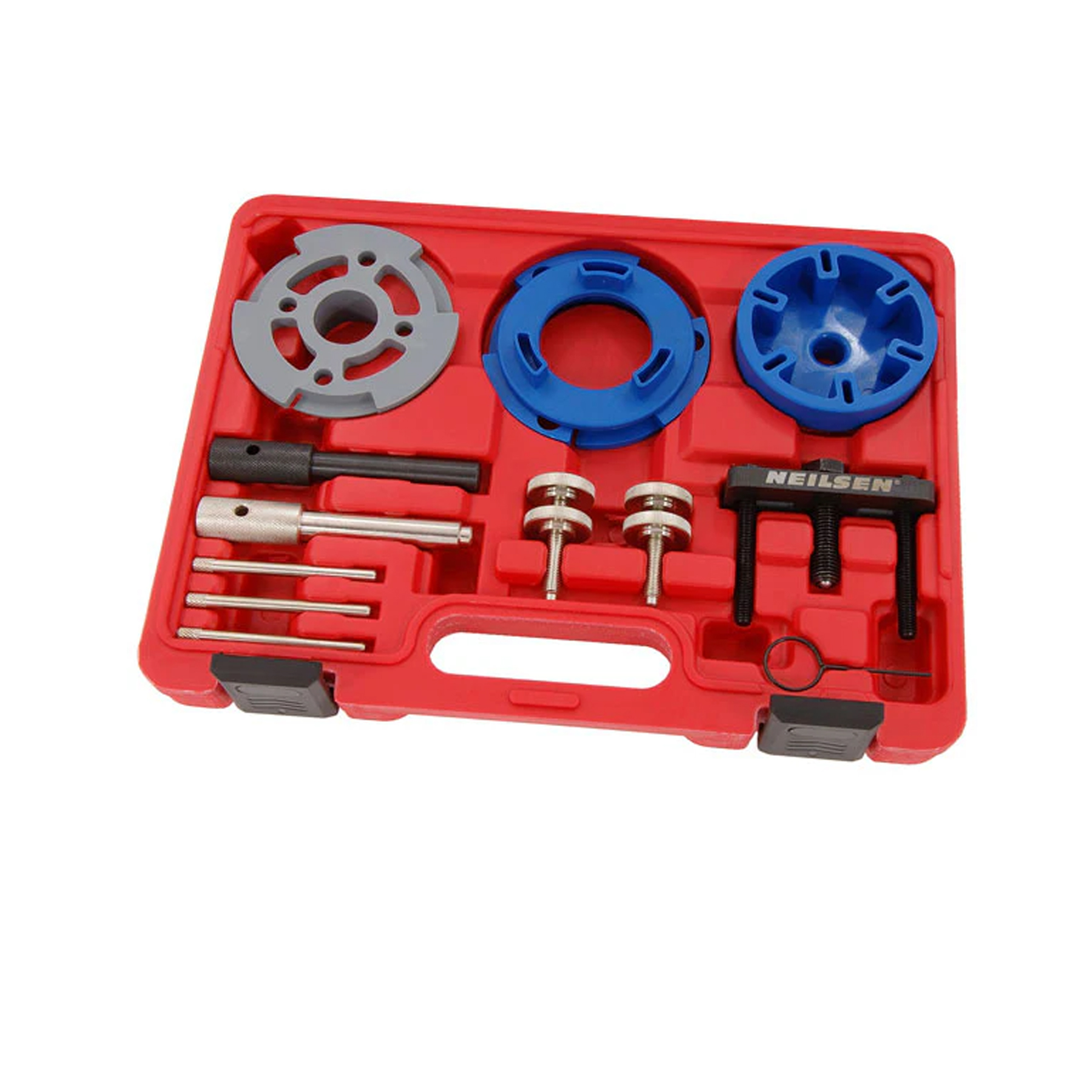

Contents:
2 x flywheel locking pin
2 x shoulder bolt
1 x engine cover alignment tool
1 x engine cover crankshaft seal tool
1 x high pressure pump sprocket retaining tool
1 x high pressure pump removal tool
1 x 6mm locking pin set
1 x 2mm tensioner locking pin
